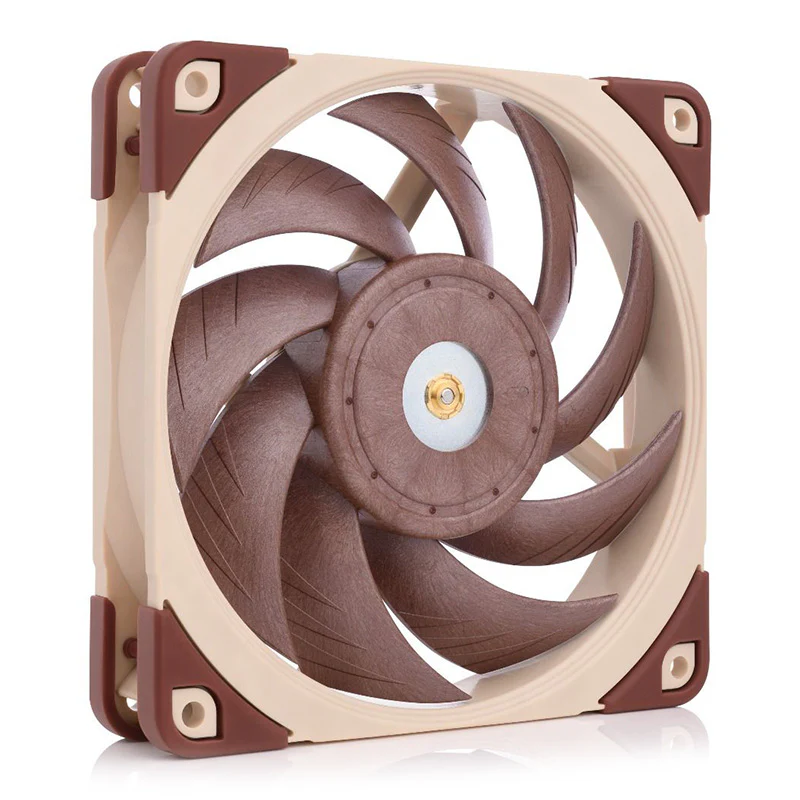

Noctua NF-A12x25-5V-PWM 120mm 5V PWM Fan
SPECIFICATIONS:
|
Size |
120x120x25 mm |
|
Mounting hole spacing |
105x105 mm |
|
Connector & pin-configuration |
4-pin PWM |
|
Cable length |
20cm + 30cm NA-EC1 extension cable |
|
Bearing |
SSO2 |
|
Blade geometry |
A-Series with Flow Acceleration Channels |
|
Frame technology |
AAO (Advanced Acoustic Optimisation) |
|
Material |
Sterrox® LCP |
|
Rotational speed (+/- 10%) |
1900 RPM |
|
Min. rotational speed @ 20% PWM (+/-20%) |
450 RPM |
|
Airflow |
96,2 m³/h |
|
Acoustical noise |
21,4 dB(A) |
|
Static pressure |
2,07 mm H₂O |
|
Input power (typical) |
1,48 W |
|
Input power (max.) |
1,75 W |
|
Input current (typical) |
0,3 A |
|
Max. input current |
0,35 A |
|
Operating voltage |
5 V |
|
Voltage PWM signal |
5 V |
|
MTTF |
> 150.000 h |
|
Scope of delivery |
30cm extension cable NA-AV2 anti-vibration mounts USB power adaptor cable OmniJoin adaptor set Fan screws |
|
Notes |
Being a 5V fan, the NF-A12x25 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers. |
