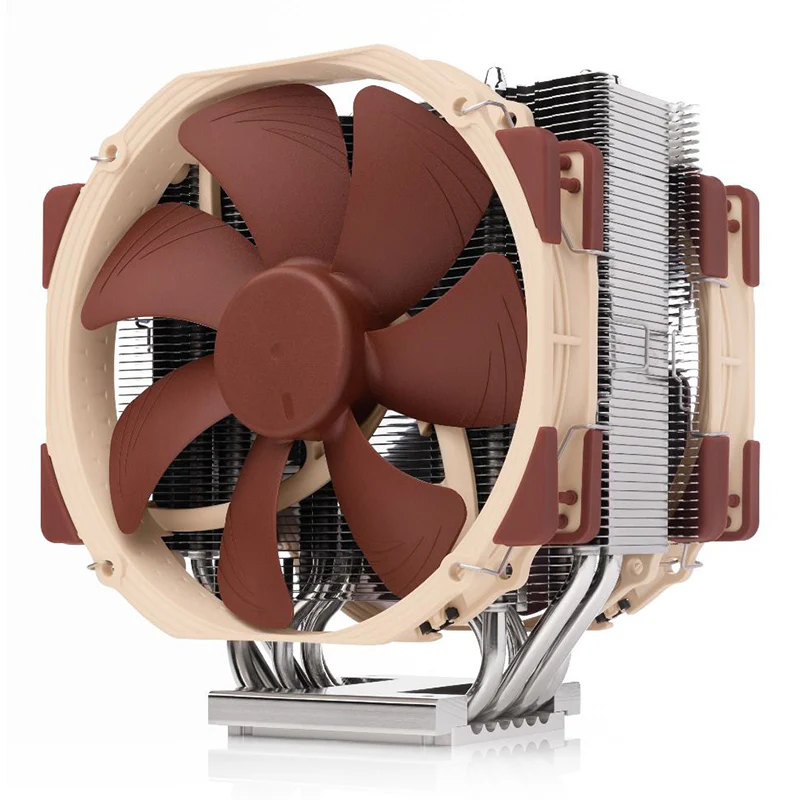

Noctua CPU Cooler (NH-U14S-TR5-SP6)

Socket compatibility

AMD sTR5, SP6

Height (without fan)

165 mm

Width (without fan)

150 mm

Depth (without fan)

52 mm

Weight (without fan)

797 g

Height (with fan)

165 mm

Width (with fan)

150 mm

Depth (with fan)

111 mm

Weight (with fan)

1136 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

NSPR

179

Max. TDP

see NSPR

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

Scope of delivery

2x NF-A15 HS-PWM premium fan

NA-YC1 4-pin PWM splitter cable

NT-H2 high-grade thermal compound (pre-applied)

SecuFirm2 „¢ mounting kit for sTR5/SP6

NM-SMT4 mounting tool for mounting bracket installation

FAN SPECIFICATION

Model

2x Noctua NF-A15 HS-PWM

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM

Min. rotational speed @ 20% PWM (+/-20%)

300 RPM

Max. airflow

140,2 m ³/h

Max. airflow with L.N.A.

115,5 m ³/h

Max. acoustical noise

24,6 dB(A)

Max. acoustical noise with L.N.A.

19,2 dB(A)

Airflow

140.2 m ³/h

Airflow with L.N.A.

115.5 m ³/h

Acoustical noise

24.6 dB(A)

Input power (typical)

1.056 W

Input power (max.)

1,56 W

Voltage range

12 V

MTTF

> 150.000 h

OTHERS

Notes

Please note that the NH-U14S TR5-SP6 is a dedicated version for AMD sTR5/SP6 sockets. Due to its customised larger base, it cannot be used on smaller sockets and is incompatible with Noctua €™s mounting kits for these sockets. Please refer to our socket compatibility overview for details.
