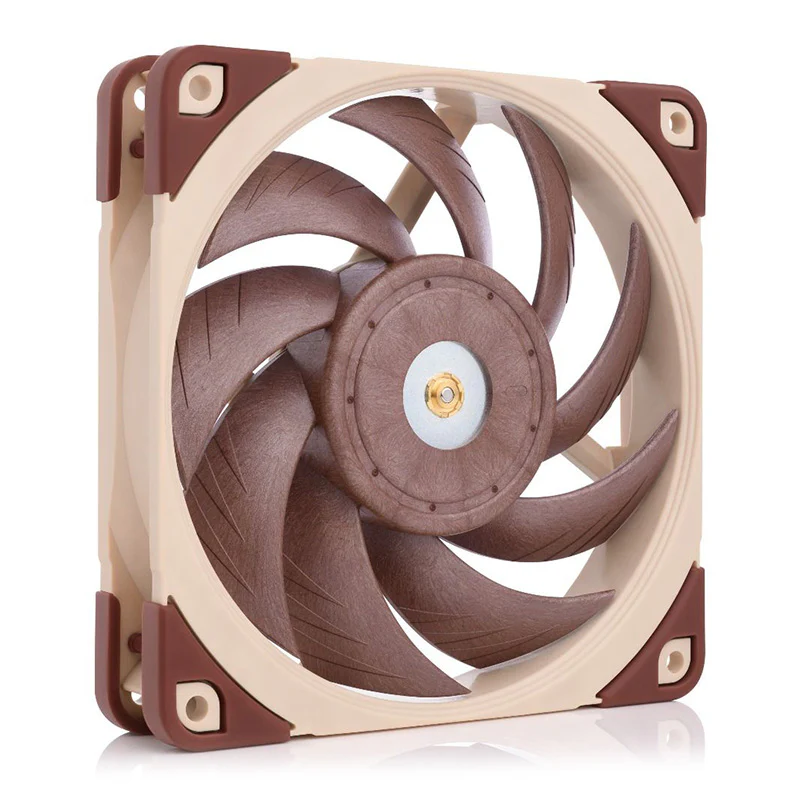

Noctua 120mm 1200RPM PWM Fan (NF-A12x25-LS-PWM)

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

20cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Material

Sterrox ® LCP

Rotational speed (+/- 10%)

1200 RPM

Rotational speed with L.N.A. (+/- 10%)

900 RPM

Min. rotational speed @ 20% PWM (+/-20%)

450 RPM

Airflow

55,7 m ³/h

Airflow with L.N.A.

39,4 m ³/h

Acoustical noise

12,1 dB(A)

Acoustical noise with L.N.A.

7,6 dB(A)

Static pressure

0,82 mm H ‚‚O

Static pressure with L.N.A.

0,41 mm H ‚‚O

Input power (typical)

0,396 W

Input power (max.)

0,6 W

Input current (typical)

0,033 A

Max. input current

0,05 A

Operating voltage

12 V

Voltage PWM signal

5 V

MTTF

> 150.000 h

Scope of delivery

NA-RC8 Low-Noise Adaptor (L.N.A)

NA-YC1 4-pin PWM y-cable

NA-EC1 30cm extension cable

4x NA-AV2 anti-vibration mounts

NA-AVG1 anti-vibration gasket for water cooling radiators

Fan screws
