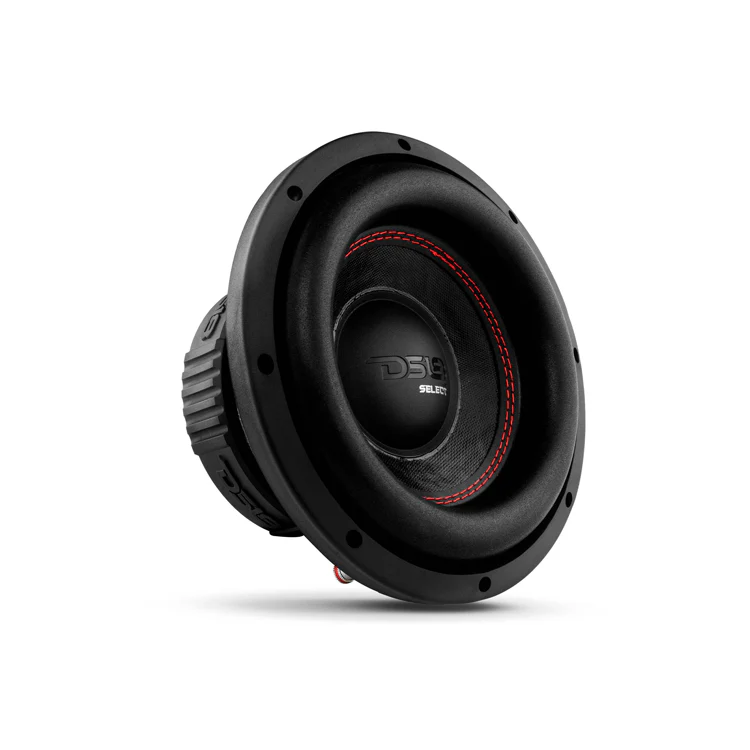

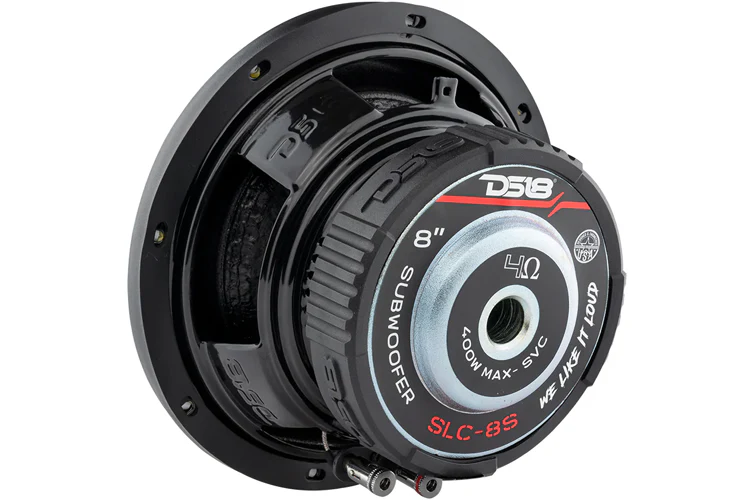

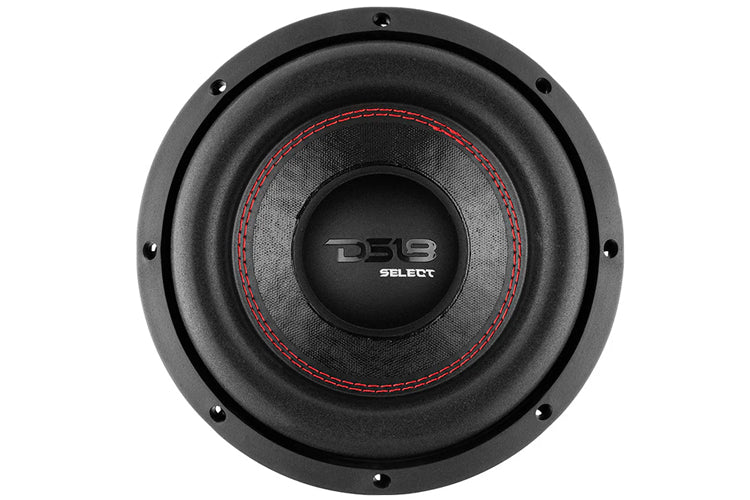

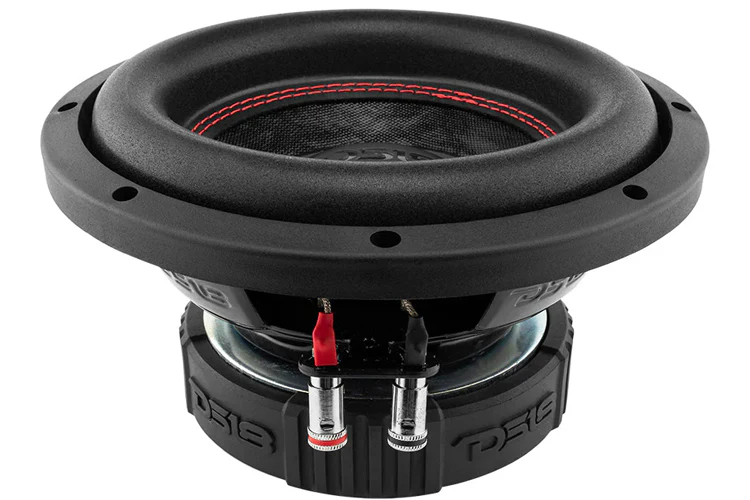

DS18 SLC8S SELECT 8" Subwoofer 200 Watts Rms SVC 4-Ohm
Introducing the DS18 SLC8S a powerful subwoofer that redefines performance in any car audio setup.
Part of DS18's acclaimed Select Series, these subwoofers are available in 8", 10", and 12" sizes and are built to impress with bold black steel baskets that combine durability with style. Engineered for both new car audio enthusiasts and value-conscious buyers, the Select Series delivers superior build quality and RMS power, setting a new standard for entry-level subwoofers.
Key Features:
- 8" Subwoofer
- MAX Power: 400 Watts
- RMS Power: 200 Watts
- Impedance: 4-Ohm 2" SVC
- Ferrite Magnet
- 84dB
Specifications:
- Nominal Diameter: 8" / 203mm
- Nominal Impedance: 4 Ohm
- RMS Power Handling: 200 W
- Maximum Power Handling: 400 W
- Sensitivity (1w/1m): 84 dB
- Frequency Response: 35Hz - 4.5KHz
- Recommended Lo Pass Crossover: 120Hz
- MOTOR
- Voice Coil Diameter: 2" / 50.8mm
- Voice Coil Former Material: Aluminum
- Winding Material: CCAW
- Cone Material: Non-Pressed Paper
- Dust Cap Material: Paper
- Surround Material: Foam
- Basket Material: Steel
- Basket Color/Finish: Gloss black
- Magnet Material: Ferrite
- Magnet Weight: 38 Oz
- THIELE & SMALL PARAMETERS
- Equivalent Volume Vas: 7.78L / 0.27ft Ā³
- Free Air Resonance Fs: 50 Hz
- Mechanical Factor Qms: 6.875
- Electrical Factor Qes: 0.889
- Total Factor Qts: 0.787
- Moving Mass Mms: 115.524 g
- Compliance Cms: 0.034 mm/N
- Bl Factor Bl: 8.568
- Voice Coil Inductance Le: 0.455 mH
- Diaphragm Area Sd: 201.23 cm Ā²
- DC Resistance Re: 3.4 ohms
- Efficiency Bandwidth Product EBP: 56.24
- RECOMMENDED ENCLOSURES
- Sealed Internal Volume: 17L / 0.6ft Ā³
- Sealed Box Output Response F3: 50Hz
- Ported Internal Volume: 28.3L / 1ft Ā³
- Port Size (Square): 0.87" x 7.99" x 12.1" / 22.2 x 203 x 309.1mm
- Port Tuning Frequency FB: 35Hz
- Ported Box Output Response F3: 28Hz
- MEASUREMENTS
- Overall Diameter: 8.42" / 214mm
- Overall Depth: 4.92" / 125mm
- Front Mount Baffle Cutout: 7.2" / 183mm
- Mounting Depth: 3.85" / 98mm
- Motor Diameter: 5.51" / 140mm
- Gross Single Unit Weight (lb): 7
- Dimensions (W x L x H in Inches): 9 x 9 x 5.75
- Quantity of Units in Master Carton: 4
- Gross Master Carton Weight (lb): 30
- Master Carton Dimensions (W x L x H in Inches): 9 x 18.75 x 12
