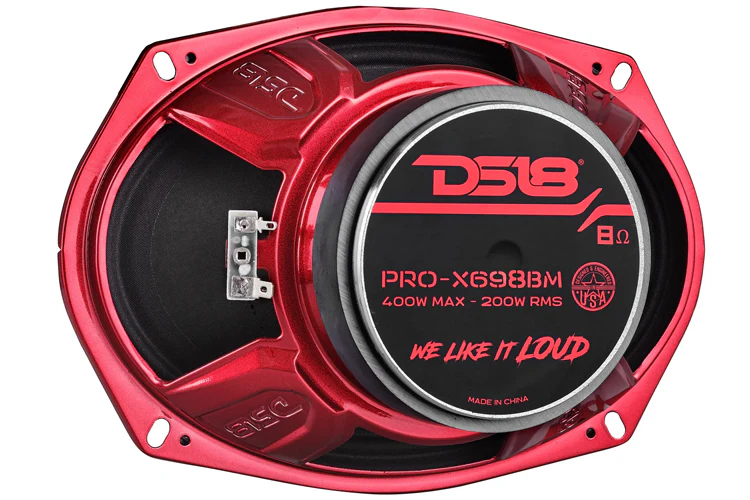

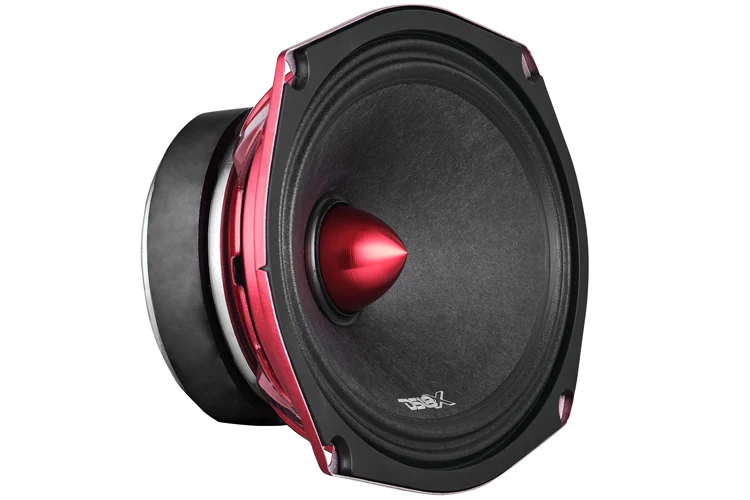

DS18 PRO-X698BM PRO-X 6X9" Mid-Range Bullet Loudspeaker (Each)

Experience unmatched clarity and volume with the DS18 PRO-X698BM the ultimate upgrade for 6x9" car speakers.
Built for high performance, the PRO-X698BM delivers bold, distortion-free sound that brings the energy of a live concert straight to your vehicle. Designed for serious audio enthusiasts, this speaker handles an impressive 200W RMS and peaks at 400W, allowing you to turn up the volume without compromising on sound quality.

Key Features:

• 6x9" Mid-Range W/Bullet
• MAX Power: 400 Watts
• RMS Power: 200 Watts
• Impedance: 8-Ohm
• Ferrite Magnet
• 96dB ~ w/Grill

Specifications:

• Nominal Diameter: 6 x 9" / 152 x 228 mm
• Nominal Impedance: 8 Ohm
• RMS Power Handling: 200W
• MAX Power Handling: 400W
• Sensitivity (1w/1m): 96dB
• Frequency Response: 100Hz €“12.5KHz
• Recommended HI Pass Crossover: 120Hz
• Sold in Pair or Single: Single
• Grill Included: Yes

Motor:

• Voice Coil Diameter: 1.5" / 38.6mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Cone Material: Non-Pressed Paper
• Bullet Material: Aluminum
• Bullet Color/Finish: Glossy Red
• Surround Material: Cloth
• Basket Material: Steel
• Basket Color/Finish: Glossy Red
• Magnet Material: Ferrite
• Magnet Weight: 27 Oz
• Displacement Volume: 0.32L / 0.011 ft ³

Thiele & Small Parameters:

• Equivalent Volume (Vas): 27.34L / 0.965 ft ³
• Excursion (Xmax): 7.7mm
• Free Air Resonance (Fs): 120Hz
• Mechanical Factor (Qms): 5.342
• Electrical Factor (Qes): 0.768
• Total Factor (Qts): 0.687
• Mechanical Mass (Mms): 8.21g
• Mechanical Compliance (Cms): 0.234mm/N
• BL Factor: 6.84
• Voice Coil Inductance (Le): 4.11mH
• Cone Area (Sd): 207.34 cm ²
• DC Resistance (Re): 5.2 ohms
