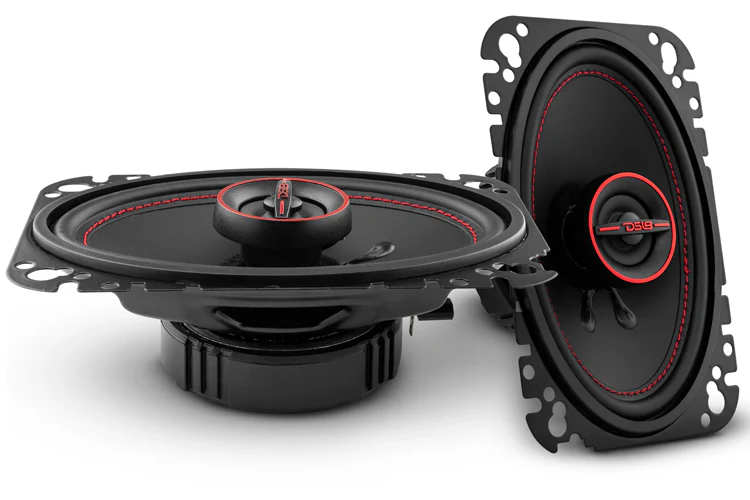

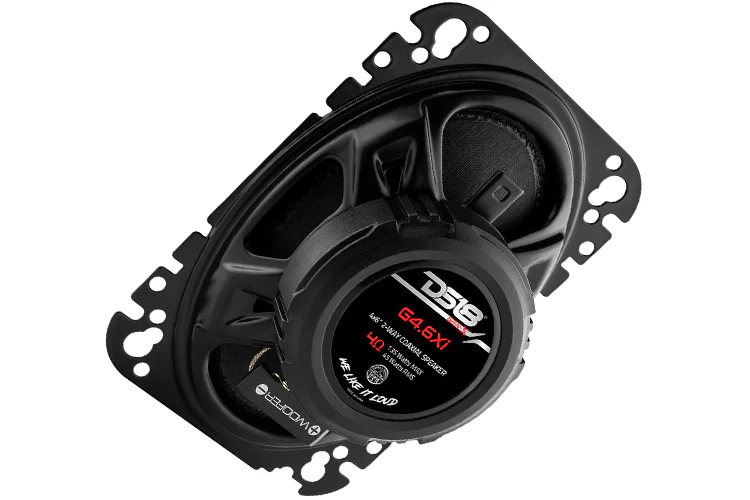

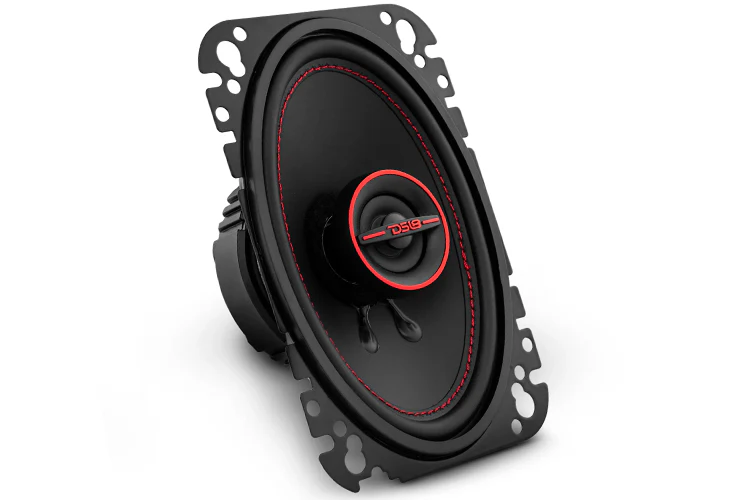

DS18 G4.6XI GEN-X 4x6 2-Way Coaxial Speakers Pair

The GEN-X series brings back the powerful sound, crisp clarity, and impressive range that loud audio enthusiasts love €”now housed in a tough steel basket built to endure the rigors of any vehicle. Its rugged construction makes it an excellent choice for those seeking a dependable, long-lasting speaker. This durability is especially valuable in car audio setups, where constant movement and vibration can easily wear down less sturdy components.

Key Features:

• 4X6" 2-Way Coaxial
• MAX Power: 135 Watts
• RMS Power: 45 Watts
• Impedance: 4 Ohm
• Barium Ferrite & Neodymium Magnets
• Pair ~ 84dB

Specifications:

• Nominal Diameter: 4x6" / 101x152mm
• Nominal Impedance: 4 Ohms
• RMS Power Handling: 45W
• Maximum Power Handling: 135W
• Sensitivity (1w/1m): 84dB
• Frequency Response: 45Hz €“ 20KHz
• Recommended Hi-Pass Crossover: 80Hz
• Number of Ways: 2
• Pair or Single: Pair
• Grill Included: No

Woofer Specifications:

• Voice Coil Diameter: 1" / 25.5mm
• Voice Coil Former Material: ASV
• Winding Material: EISV
• Cone Material: Paper
• Surround Material: Rubber
• Basket Material: Steel
• Basket Color/Finish: Black Matte
• Magnet Material: Barium Ferrite
• Magnet Weight: 6.3 Oz / 180g

Thiele and Small Parameters:

• Equivalent Volume Vas: 1.8L / 0.063ft ³
• Excursion (one way) Xmax: 2.2mm
• Free Air Resonance Fs: 115Hz
• Mechanical Factor Qms: 4.3
• Electrical Factor Qes: 2.3
• Total Factor Qts: 1.5
• Moving Mass Mms: 9.4g
• Compliance Cms: 195mm/N
• BL Factor: 3.1
• Voice Coil Inductance Le: 151uH
• Cone Area Sd: 84.3cm ²
• DC Resistance Re: 3.7 Ohms
• Moving Mass Without Air Mmd: 8.5g
