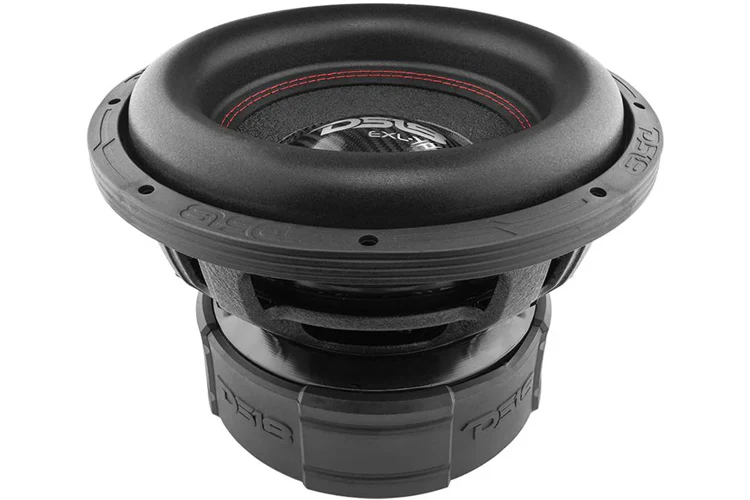

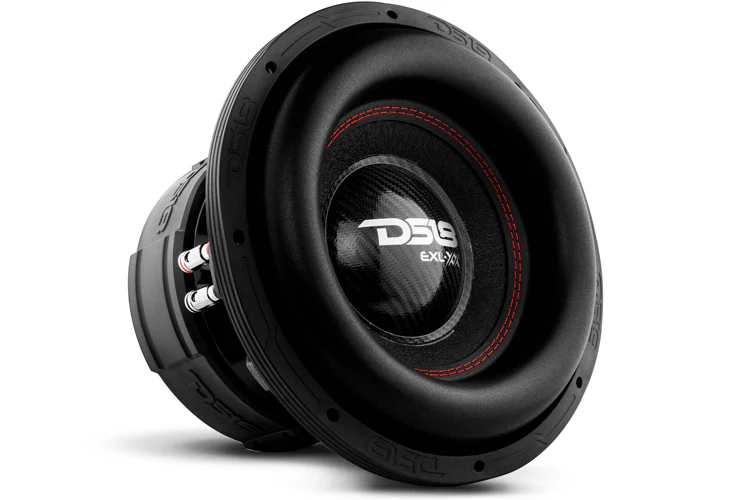

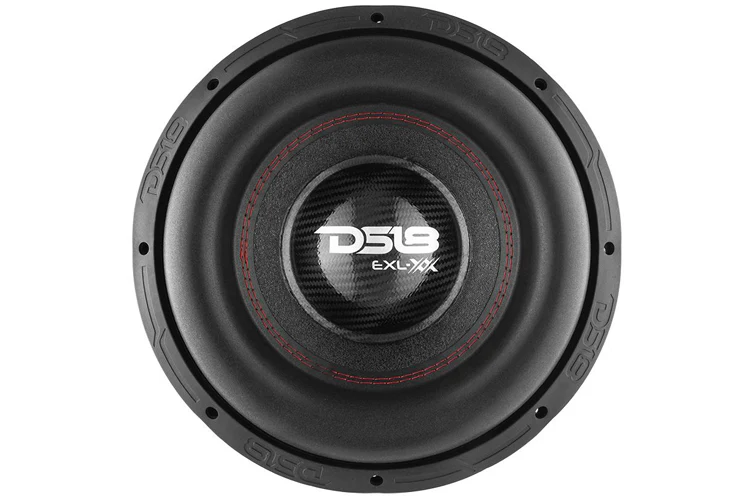

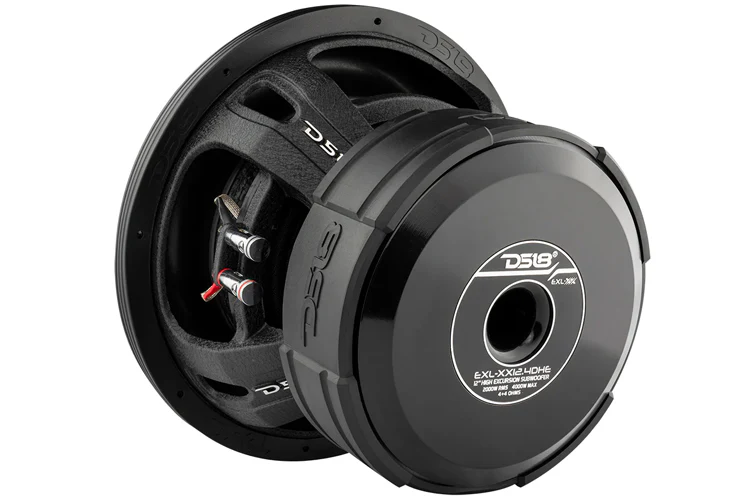

DS18 EXL-XX12.4DHE 12" High Excursion Subwoofer 2000W RMS DVC 4-Ohm

Built for true car audio enthusiasts, the EXL-XX12.4DHE redefines deep bass performance with ground-shaking power and precision that delivers a truly immersive listening experience.
As a premium addition to our EXL lineup, it stands out for its incredible value €”competing with the market €™s top high-excursion subwoofers at a fraction of the cost. Designed for demanding audiophiles, it features a robust 3-inch black aluminum voice coil, ensuring superior efficiency and power handling. With a powerful 2000W RMS and a jaw-dropping 4000W MAX output, the EXL-XX12.4DHE delivers bass you can feel throughout your entire ride.

Key Features:

• 12" High Excursion Subwoofer
• MAX Power: 4000 Watts
• RMS Power: 2000 Watts
• Impedance: 4-Ohm 3" DVC
• Ferrite Magnet
• 87dB

Specifications:

• Nominal Diameter: 12"
• Nominal Impedance: 4+4 ohms
• RMS Power Handling: 2000W
• MAX Power Handling: 4000W
• Sensitivity (1w/1m): 87dB
• Frequency Response: 20-1.3K Hz
• Recommended Lo Pass Crossover: 80 Hz

• Motor
• Voice Coil Diameter: 3" / 75.6mm
• Voice Coil Former Material: Black Aluminum
• Winding Material: CCAW
• Cone Material: Paper
• Dust Cap Material: Glass Fiber
• Surround Material: Foam
• Basket Material: Aluminum
• Basket Color/Finish: Black
• Magnet Material: Ferrite
• Magnet Weight: 306 OZ
• Displacement Volume: 3.26L

• Thiele & Small Parameters
• Equivalent Volume Vas: 20.738L
• Free Air Resonance Fs: 41.3 Hz
• Mechanical Factor Qms: 4.525
• Electrical Factor Qes: 0.511
• Total Factor Qts: 0.459
• Moving Mass Mms: 285.433 g
• Compliance Cms: 0.026 mm/N
• Bl Factor BL: 17.166
• Voice Coil Inductance Le: 9.8 mH
• Diaphragm Area Sd: 433.74 cm ²
• DC Resistance Re: 3.6 + 3.6 ohms
• Efficiency Bandwidth Product EBP: 80.8

• Measurement
• Overall Diameter: 12.63" / 321mm
• Overall Depth: 9.25" / 235mm
• Front Mount Baffle Cutout: 11.1" / 282mm
• Mounting Depth: 7.87" / 200mm
• Motor Diameter: 8.89" / 226mm
