Creality Otter Lite Basic 3D Scanner with 24 Bit Full Colour Scanning

Capture detailed 3D models with ease using the Creality Otter Lite Basic 3D Scanner. Featuring up to 0.05mm accuracy and advanced 4 lens stereo vision, it delivers fast and reliable scanning for objects from 20mm to 2000mm. The Otter Lite Basic can scan black and metal surfaces without spraying, while 24 bit full colour capture preserves realistic textures and detail. Ideal for 3D printing, reverse engineering, modelling and creative projects at home, in studios or professional workshops.

Key-Features:

• • Features:
• • Up to 0.05mm high precision scanning accuracy
• • Scans objects from 20mm to 2000mm

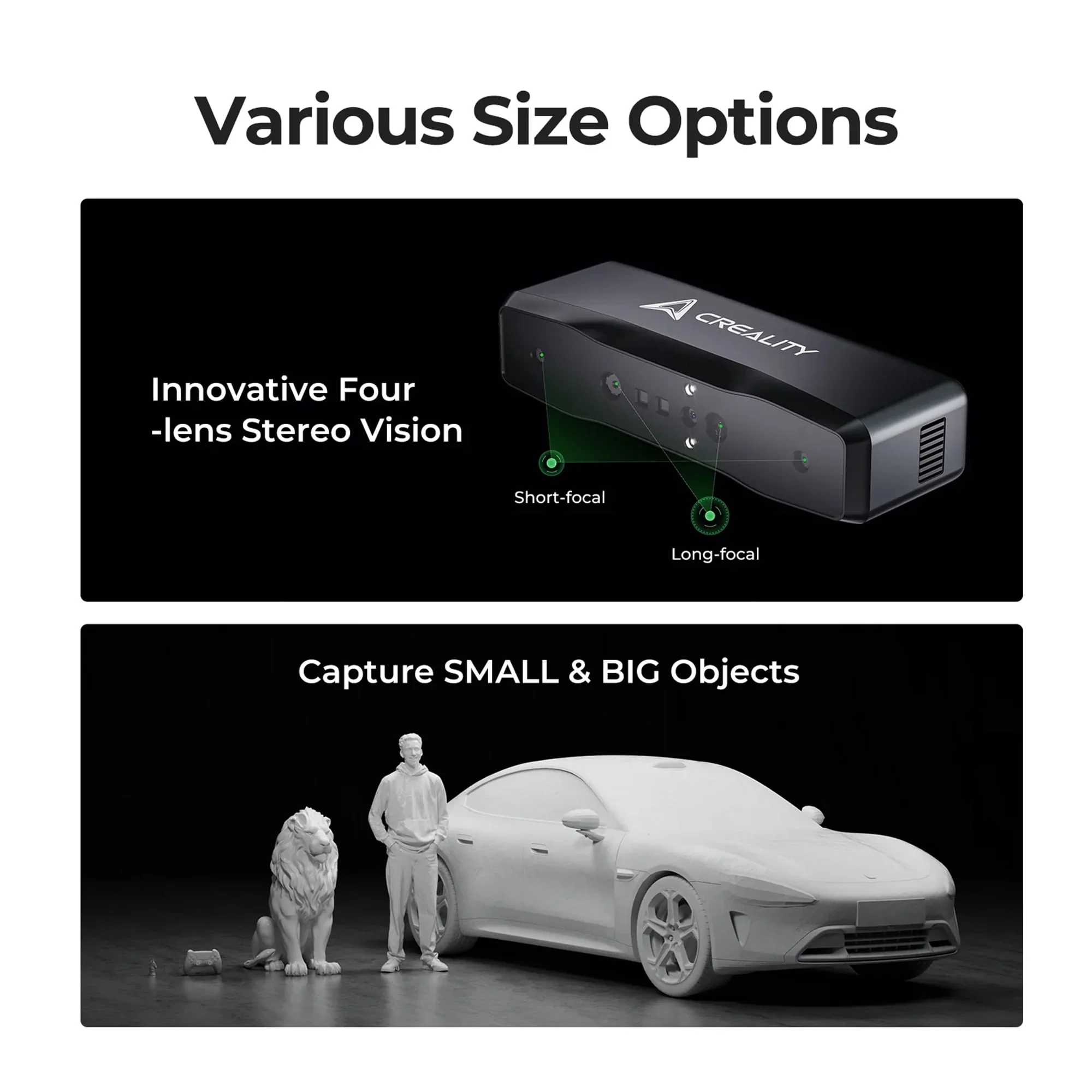

• • Innovative 4 lens stereo vision system
• • Fast scanning speed up to 30fps
• • Scan black and metal objects without spraying
• • 24 bit full colour texture capture
• • Portable lightweight scanner design
• • Suitable for reverse engineering, modelling and 3D printing workflows
• • Specifications/Attributes:
• • Size: 17.3 x 3.9 x 5.6cm
• • Scanning Mode: NIR (Infrared Binocular Structured Light)
• • Accuracy: 0.05mm at 100mm 1
• • 3D Resolution: 0.1 to 2mm
• • Scanning Speed: Up to 30fps
• • Min. Scan Volume: 20mm x 20mm x 20mm
• • Single Capture Range:
• • Close Range Mode
• • 100mm x 62mm at 120mm
• • 160mm x 130mm at 250mm
• • Long Range Mode
• • 352mm x 254mm at 300mm
• • 788mm x 509mm at 600mm
• • 1460mm x 1017mm at 1200mm
• • Working Distance: 120mm to 1200mm
• • Colour Mapping: Yes
• • Alignment Mode: Marker / Geometry / Texture
• • Output Format: OBJ / STL / PLY
• • IMU: Yes
• • Marker Recognition Enhancement: 8 NIR LEDs
• • Colour Supplemental Light: 2 White LEDs
• • Laser Safety: Class I (Eye Safe)
• • Main Unit Weight: 300g

Package Includes:

• • 1 Creality Otter Lite Basic 3D Scanner
